UN-Victor series passenger elevators use the self-developed intelligent technology innovation system to create intelligent elevators for high-end commercial buildings, star-rated hotels, high-quality residences and other
Capacity: 2000kg
Speed: 4.0m/s
Travel: 200m
Maximum Stops: 48 floors
PM permanent magnet synchronous gearless traction machine, compact transmission structure, small size, using ultra-high precision absolute encoder, no need for deceleration system and excitation current, reduce wear, greatly reduce thermal energy, mechanical energy and other losses, maintenance more convenient; equipped with silent brake, the brake noise is smaller and more energy-saving.
The machine does not need lubricating oil, to ensure the machine room is clean, maintenance-free, and environmentally friendly.
The rotating magnetic field of the motor formed by permanent magnet materials with high temperature resistance, high density and balanced magnetic field reduces energy loss, makes the system response time fast, and improve efficiency.
Effective noise reduction of 5-10 (db)A, reducing the noise in the elevator room and the car when the elevator is running. Compared with the traditional traction system, the noise during operation can be reduced by more than 10db.

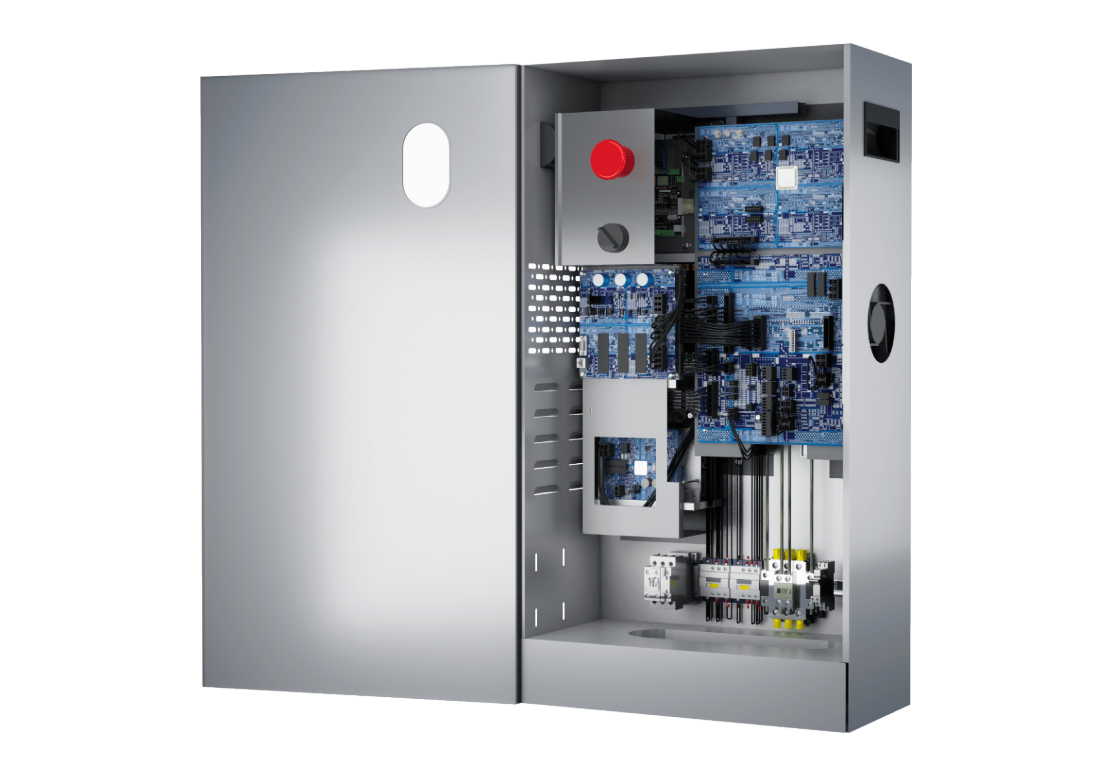

The application of dual 32-bit CPU and 32-bit high-speed digital signal processor (DSP) realizes full digital control and motor drive, which further improves the control performance and reliability of the system, and full guarantee the comfort and safety of the elevator.
The dual CPU and dual-32-bit control cabinet adopts the elevator-specific variable-voltage and variable-frequency drive control technology, which fully realizes the advantages brought by “frequency conversion” to the elevator, making the elevator operation control faster and more accurate.
Using the space vector variable transformation control technology, according to the physiological adaptation requirements of the human body, the use of computer optimization, accurate speed regulation, so as to make the operation more stable.
Through the vector closed-loop control technology, the inverter ensures that the elevator drive is strong, and the operation is stable and accurate, making the ride a real enjoyment.
Using the latest permanent magnet synchronous motor drive and the latest stepless speed regulation and variable frequency control gate drive system control, the energy saving reaches more than 60%.

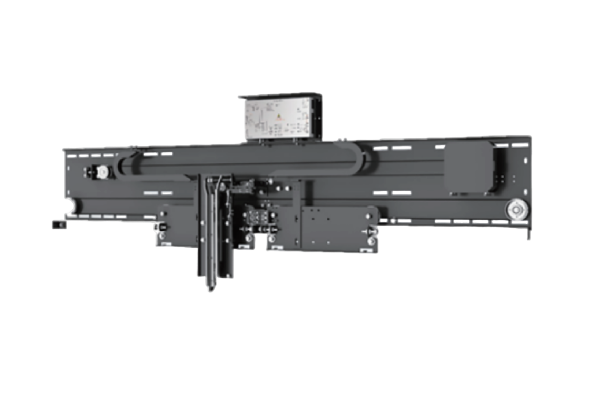

Adopt the latest permanent magnet synchronous motor drive and the latest stepless speed regulation and variable frequency control door drive system control, compared with ordinary door operators, the energy saving is more than 60%. And the mechanical structure is compact, which greatly saves the building space.
It’s driven by the latest flat rare earth permanent magnet synchronous motor, and the mechanical structure is compact, which greatly saves space. The height of the car is unlimited, and the utilization rate of the hoistway i high.
It adopts the latest stepless speed and variable frequency control gate drive system control, closed-loop variable control, real-time speed feedback, and the speed regulation accuracy reaches 0.1%.
Capacity: 2000kg
Speed: 2.5m/s
Travel: 125m
Maximum Stops: 48 floors
